Marshall JTM45 Build

Couldn't afford a real one so I built one to original specs. Marstran transformers, vintage preamp tubes and British KT-66 power tubes.

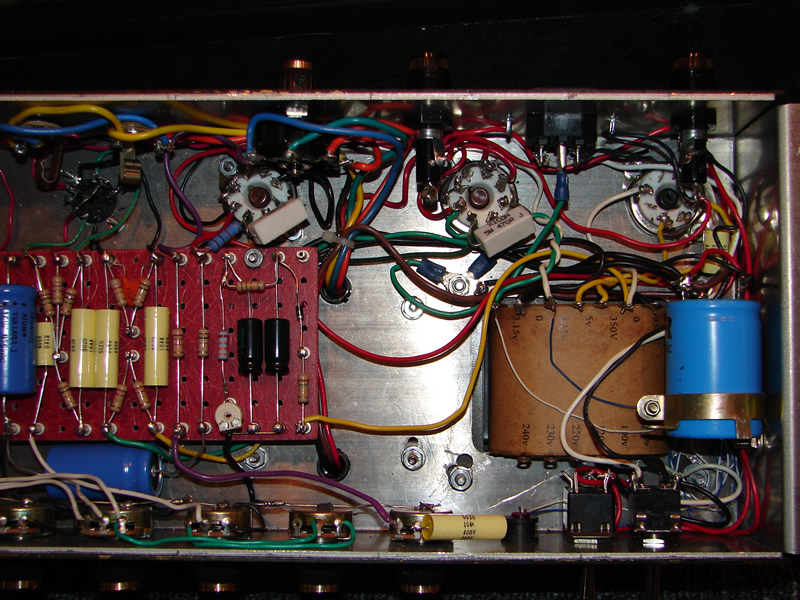

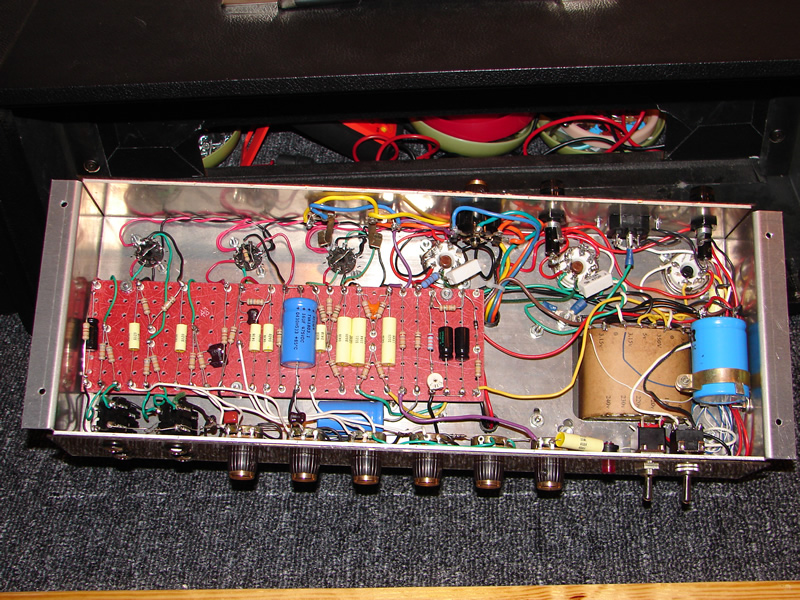

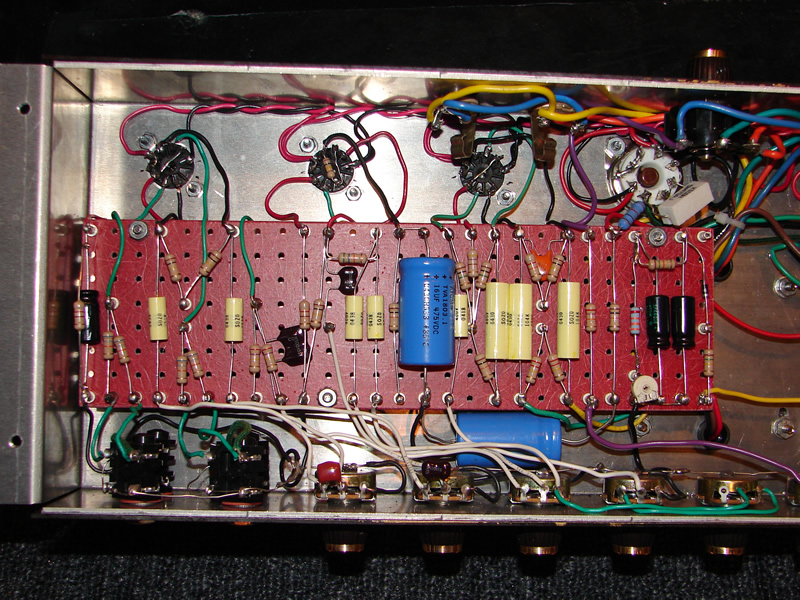

The vintage style board was made by Ray Domzalski. Chassis is from Weber VST.


Cabinet was made by Mojo Music. Amp is mated with either Avatar open back cabs loaded with two Weber Bluedog 30W speakers or Celestion G12H speakers. Or both.

Unless indicated otherwise, all photographs are by Andrew Leslie.
